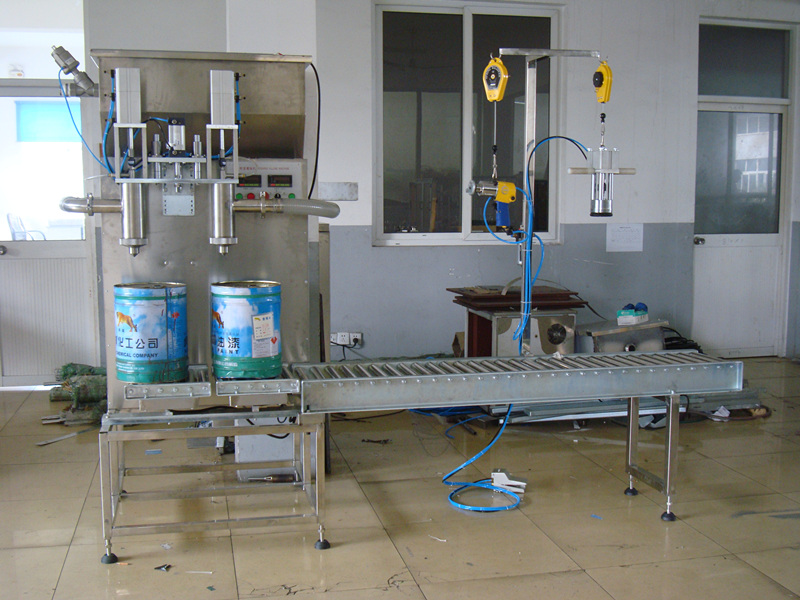

1, Keli sensor, long life service and stability, ;
2 , computer automatic weighing and high precision;
3, double speed filling (at the beginning of fast filling,automatic slow filling when close to the target ) to ensure the filling accuracy;
4, vacuum suck system to ensure no leakage;
5, press button at anytime, easy to clean pipes and emergency stop;
6, special treatment can be filled with high temperature liquid, corrosion liquid, high viscosity liquid.
7. The main frame is 304 stainless steel, and the material contact part is 304 stainless steel material
Cap locking machine characteristics: specially designed for international standard bucket cap.
Paint bucket cap locking machine application: specially used for paint barrels, chemical barrels, metal barrels, the cap locking head go down press, the lace of cap crimp inside of neck of bucket, the cap and bucket neck connected, thereby locked seal the bucket.
Parameter：
■Cap Diameter 300mm
■Handle force 50-60kg
■Application of cover thickness 0.4–0.5mm
■The claw can bear the maximum clamping force 800N
■Clamping force of handle when working ≦680±50N
■Overall Size 675×345mm
■Handle force 11±1kg
Filling principle
The machine operate by button,PLC controlled. Weighing sensor, liquid level sensor, limit sensor, through the module transfer to PLC. The button give signal to start work, the PLC controls the filling weight by weighing and measuring. The output signal controls the working procedure and completes the automatic filling
Voltage： 220V/50Hz
Power： 1KW
Air Pressure： ≥0.5Mpa
Air Consumption: ≤0.15M3/Min
Filling Weight: 5KG—30KG
Filling Precision： ±0.2%
Filling Speed: 100—150Bucket/H
Bucket: Steel Bucket
Explosive-proof Level：Exd(ia)iamIIBT4
