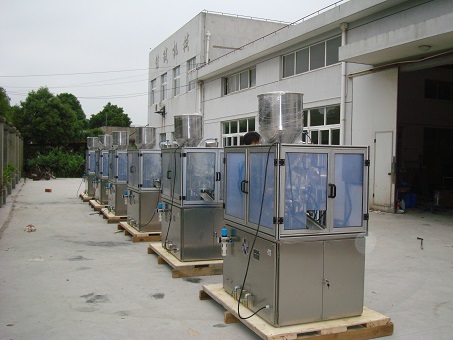

tube filling and sealing machine

Model: DGF-40
Origin: Shanghai
Features: full automatic, beautiful sealing, stable performance and high benefit
Scope of application: petrochemical, daily chemical, pharmaceutical, food, etc.
Hotline: 021-68221182

Using this Dictionary
Working Principles
Technical parameters

Using this Dictionary　Instructions

The machine is operated by switch button and touch screen, and controlled by PLC. It can automatically load tubes, check color codes, filling, sealing, stamp batch numbers or date, cut ends of tube and exit tubes. The plastic or aluminum-plastic tube with diameter 16-60mm, length 60-258mm is available.

This machine has the CE certificate, and exported to many foreign countries like Syria, Israel, Jordan, Turkey, Egypt, Mauritius, Bengal, South Africa, etc.

The machine adopts the advanced operation system like touch screen, numeral show technology. You just need to touch the screen, the machine can work automatically. The procedure is operated by switch button and controlled by PLC. The whole machine adopts original imported breeze machine and hot-air heating system which can form high and steady flux to blow the hot air into the tube, then, soften the plastic, at last, beat to form serrate and identification numbers. It can seal firmly with high speed, won’t damage the surface. The parts which contact the filling material directly are made of high quality stainless steel. It can be widely used in daily cosmetics, medicine, toothpaste, food, lubricant and other industries.

Working Principles　Working principle

Technical parameters　technical parameter

2. Technology Parameter

Model	DGF-40 (CE certificate )
Filling Volume	15-70ml, 60-120ml, 80-250ml (can choose at will)
Filling Precision	±1%
Product Ability	30-40 PCS/MINS（According To The Filling Material）
Rated Air Supply	>0.5Mpa >0 . 14M 3 /MIN
Power Supply	220V, 50HZ/60HZ
Power	4KW
Counter	0 — 999999PCS
Weight	550Kg
Size （mm）	2100×925×1704 ( LWH )

3. Main Electrical Apparatus Configuration

Product	Art name	Brand	Model	Origin
DGF-40	Touch screen	WEINVIEW	MT506M	Tai Wan
	Transducer	MITSUBISHI	FR-E540-0.75K-CHT	Japan
	PLC	MITSUBISHI	FXIS-30MT-001	Japan
	Sensor	SICK	MHT15-N2317	German
	Time Relay	OMRON	G3NA-220B DC5-24(V)	Japan
	Button	SCHNEIDER	ZB2-BWMGIC	France
	Air Switch	MERLIN GERIN	CN65N	France
	Motor	TIANMAI	DN4010YO.37	China
	Pneumatic	AIRTAC	SU32*50-S	Tai Wan
	Pneumatic	AIRTAC	MAL20*5-U	Tai Wan
	Triplet	AIRTAC	CFR-400-A	Tai Wan
	Electromagnetic Valve	AIRTAC	4U210-08	Tai Wan
	Electromagnetic Valve	AIRTAC	4U410-15	Tai Wan
	Heater	LELSTER	LE-3000	Switzerland
