Scope of application: This
machine is mainly applicable to flat threaded cover small diameter plastic,
glass and other nonmetal bottle sealing operation. Is not suitable for sealing
metal bottle cap, no thread cap and big gap tall cap. the bottle diameter less than 50 greater than the
diameter of 130 mm is suitable for output, batch size, continuous sealing
operations users.

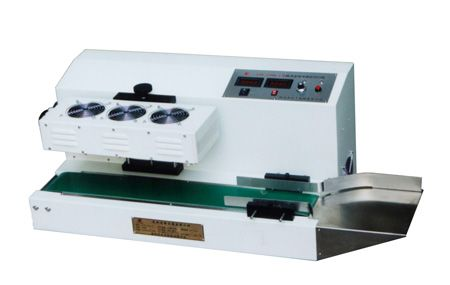

Aluminum foil sealing machine is the use of electromagnetic induction principle, the aluminum foil at the mouth of the bottle instantly produce high heat, and then fused on the bottle mouth, so that the sealing function. Sealing speed, suitable for mass production, all stainless steel mold shell, beautiful appearance, easy to use, good sealing quality. Continuous operation. It is an ideal sealing equipment in the fields of medicine, pesticide, food, cosmetics, lubricating oil and so on
Power source: 220V 50Hz
Work rate: 2 KW
Type: plastic shell type continuous conveying table
Seal diameter: φ50 - φ130 (mm)
To adapt to the high bottle: 40 ~ 200 (mm)
Transmission speed: 0 ~ 10m/s
Production capacity: 200P/S (PE bottle diameter 35mm *
bottle size 40 mm tied by)
Heavy: 42kg
Size: 115 X 48 x 40 (CM)
