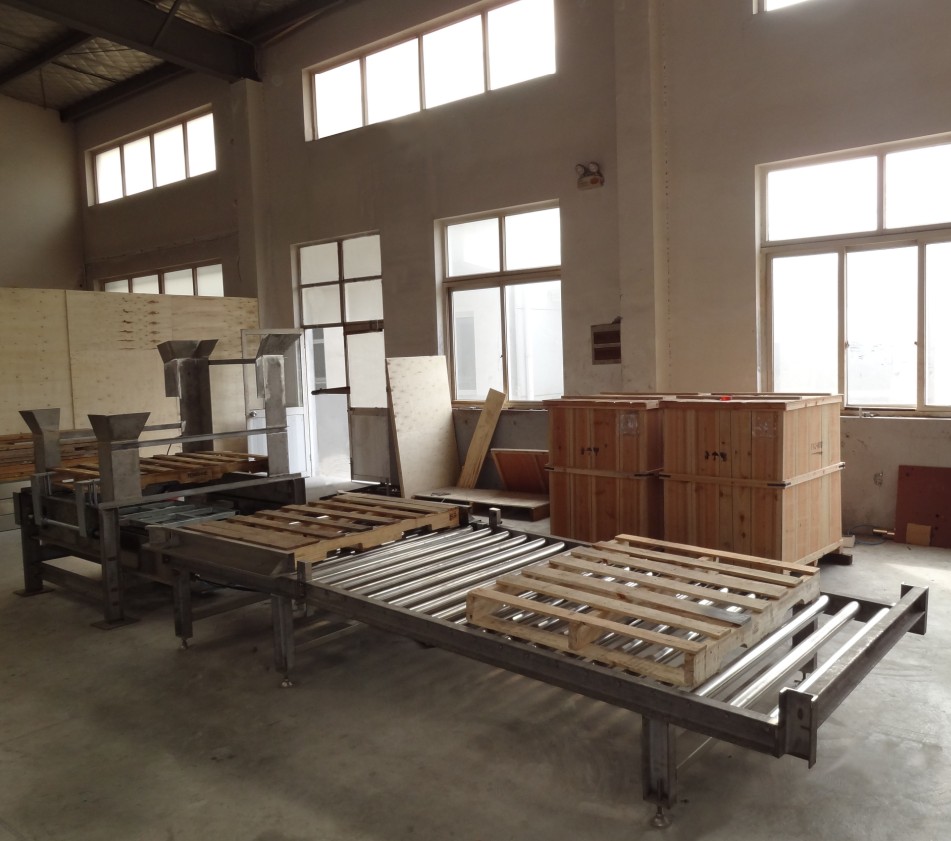

A pile of pallets will be separate one by one through the automatic separation of pallet dispensing machine, a pile of pallets put into the slot, according to the needs to transfer pallet one by one, automatic clamping device is equipped with the upper end of the pallet clamping, prevent slipping; according to the pallet specifications, can make non-standard design pallet slot; can be flexible customized according to the different characteristics, realization of unmanned automatic; applicable scope: all kinds of different size pallets, automatic separation, distribution, transfer .
Product advantage
The utility model is suitable for on-line use and automatically distributes pallet
15 pallets can be stacked at one time
Stable and reliable operation
Conveyor mode: chain conveyor
Lifting mode: cylinder
Line height: 550 +/-30mm
Motor power: 0.75kw
Air pressure: 0.4-0.7Mpa
Power supply: AC220V, 50HZ
棧板規(guī)格：1000x1000、1200x1200、1100x1300mm, 或定制
棧板層數(shù)：15層
棧板分配速度：1分鐘/pc
輸送速度：12米/分鐘
輸送方式：鏈?zhǔn)捷斔?/span>
升降方式：氣缸
線體高度：550 +/-30mm
電機(jī)功率：0.75kw
氣壓：0.4-0.7Mpa
電源：AC220V, 50HZ
